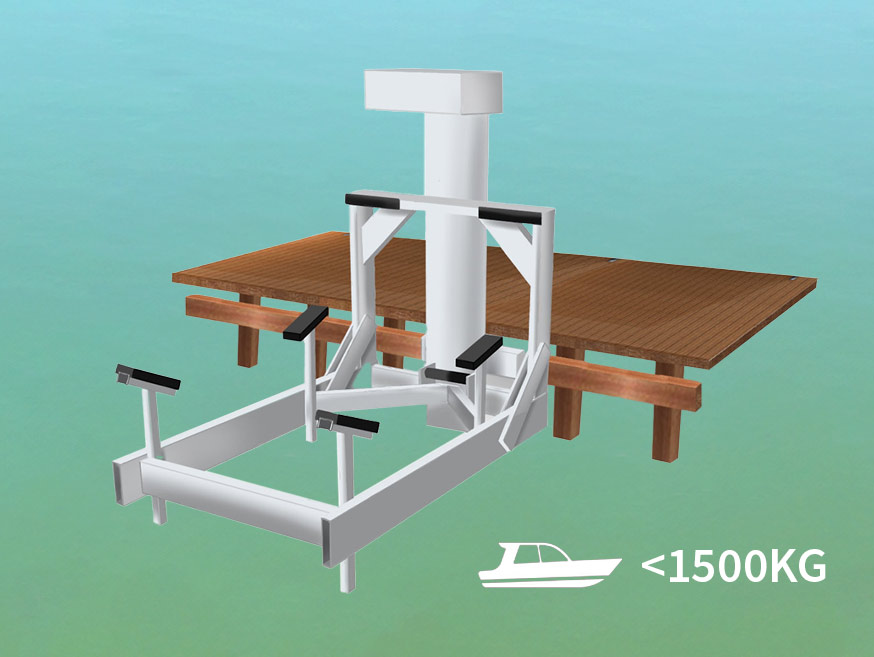

Quay boat lift
A lift on a fixed quay or jetty, with an electric winch as standard.
Boat lift · floating boat lift

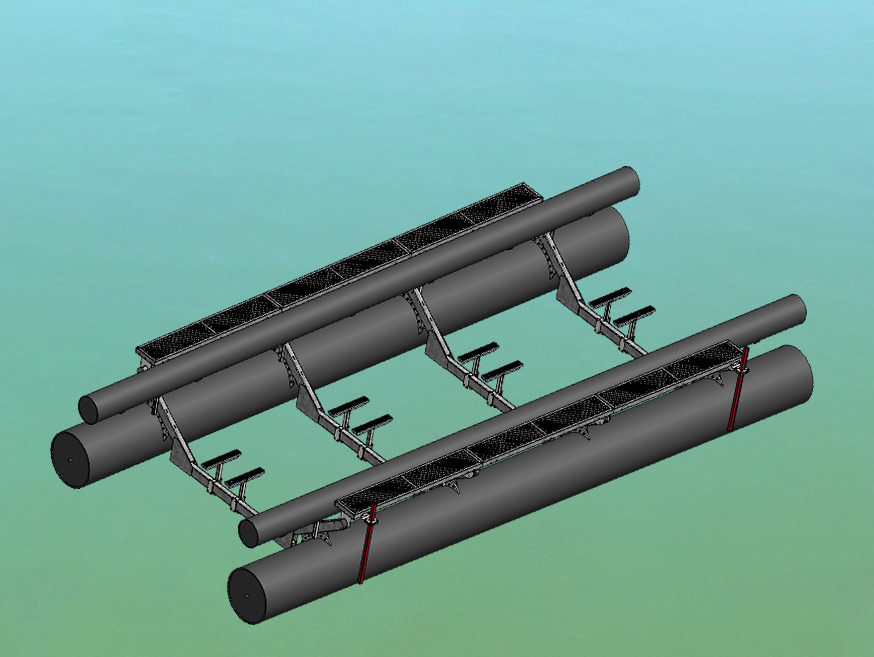

Specially designed for heavier boats. The floating boat lift lifts your boat with HDPE tanks that are raised and lowered by air pressure.
No obligation, and tailored to your boat and mooring.
The floating boat lift is made to measure for the weight of your boat and uses HDPE tanks of various sizes, operated by air pressure. The system is fully automatic, with or without a boathouse. We calculate the required buoyancy and the structure for each project.
This gives you good protection against damage to the hull from wave action and algae growth: an investment that benefits the lifespan of your boat. The galvanised steel structure with stainless steel bolts is suitable for fresh and salt water.
| Type | Floating boat lift |
|---|---|
| Lifting capacity | 1,500 to 8,000 kg |
| Operation | HDPE tanks, operated by air pressure |
| Control | Fully automatic |
| Construction | Galvanised steel, for fresh and salt water |
| Options | Walkways, boathouse, lighting, electric door, solar panels |
| Colour | Available in any RAL colour |
| Floats | Plastic (HDPE) |
| Fastening | Stainless steel bolts |
| Control box | Aluminium, powder-coated |
| Power supply | 230 volt |
| Warranty | 3 years on construction and operation |
Discuss your situation with DutchBoatHouse, without obligation.
A lift on a fixed quay or jetty, with an electric winch as standard.
| Quay boat lift | Floating boat lift | |
|---|---|---|
| Mooring | Fixed quay or jetty | Floating, also at open moorings |
| Operation | Electric winch | Air pressure in HDPE tanks |
| Lifting capacity | 750, 1,000 or 1,200 kg | 1,500 to 8,000 kg |
| Warranty | 3 years | 3 years |
A boathouse protects your boat from above.
A boat lift protects it from long-term exposure to the water.
Together they form a complete solution.
You tell us which boat you have and where it is moored. Call or email: always without obligation.
An expert visits you and accurately measures the situation at your quay or jetty. That way we know exactly which lift fits.

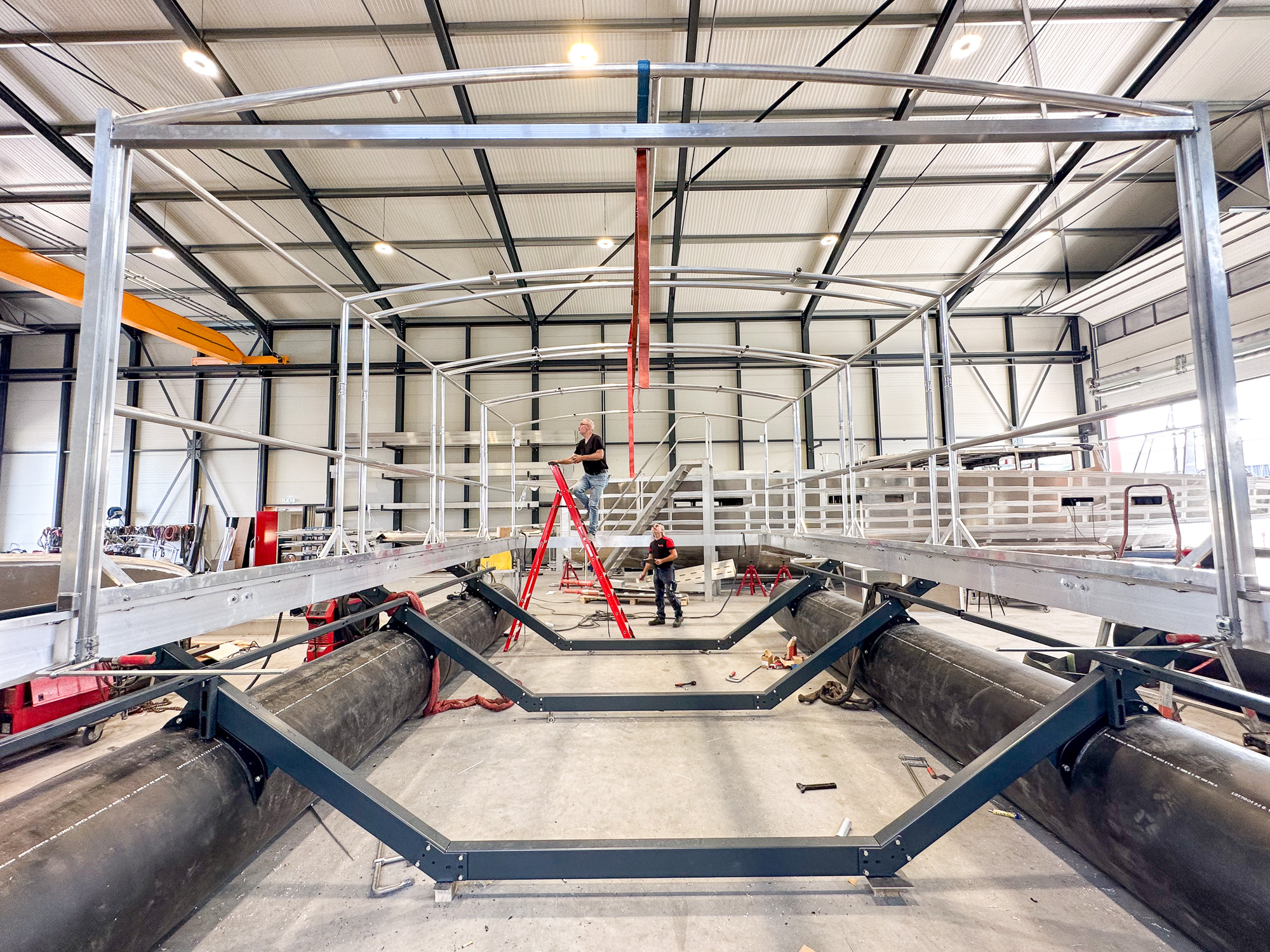

The lift is matched to your boat and manufactured in our own factory in Grou (Friesland). Fast delivery from stock.
Our own professional installation team installs the boat lift expertly on site. Installation takes half a day on average.
You can carry on sailing without a care. Every boat lift comes with a standard 3-year warranty on construction and operation.
The quay boat lift comes in three lifting classes: 750 kg, 1,000 kg and 1,200 kg, fitted with an electric winch as standard. For heavier boats from 1,500 to 8,000 kg, we supply the floating boat lift with HDPE tanks operated by air pressure; we calculate the required buoyancy and the structure for each project. If you are unsure about the weight of your vessel, we will come and measure the situation with you in person.
For boats and sloops up to and including 1,200 kg at a fixed bank or quay wall, the quay boat lift is the ideal solution. For heavier boats from 1,500 to 8,000 kg, or for open moorings, choose the floating boat lift. If you also want to protect your boat from wind and weather, the lift can be combined with a boathouse.
We determine the required entry height for each situation, looking at the height of your boat, any superstructure and the desired clearance.
Yes. Our floating boat lifts have HDPE tanks, a galvanised steel structure and stainless steel bolts, and are suitable for both fresh and salt water.
Certainly. A boat lift can be fitted seamlessly in an existing boathouse or under an existing boat shelter. DutchBoatHouse also supplies complete combinations of a new aluminium boathouse with an integrated lift.
Installing a standard boat lift takes half a day on average and is carried out expertly by our own installation team from Grou. A complete boathouse or a larger custom structure takes more time. We agree the planning and the necessary preparations with you in advance.
Every DutchBoatLift boat lift comes with a standard 3-year warranty on both construction and operation. The warranty covers defects that are demonstrably the result of a material or manufacturing fault. Damage caused by, for example, incorrect use, collision, overloading, insufficient maintenance, modifications by third parties, an unsound base or bank revetment, or storms is not automatically covered.
Tell us about your boat, mooring and wishes. We are happy to discuss which solution suits your situation.
